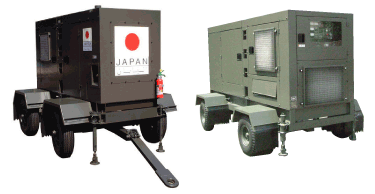

Generator〈Direct Type〉4-pole ISUZU
■ TSN-70I・TSN-115/Three Phase
| MODEL | TSN-70I | TSN-115I | |||||
|---|---|---|---|---|---|---|---|
| Generator | Frequency (Hz) | 50 | 60 | 50 | 60 | ||
| Out put (KVA) |
Stand-by | 59.4 | 71.0 | 90.0 | 115.0 | ||
| Prime | 54.6 | 65.3 | 82.0 | 105.0 | |||
| Rated speed (min-1) | 1500 | 1800 | 1500 | 1800 | |||
| Voltage (V) | AC200〜480V Please instruct the use voltage. |
||||||
| Bearing | Single bearing | ||||||
| Voltage regulation | AVR | ||||||
| MODEL | ISUZU A-4BGI-T |
ISUZU A-6BGI-T |
|||||
| Engine | Continuous rating out put | KW | 48.5 | 58.1 | 73.1 | 91.2 | |
| PS | 65.9 | 78.9 | 99.3 | 123.9 | |||
| Starting system | Erectric(Cell motor) | ||||||
| Cooling system | Radiator | ||||||
| Fuel consumption ℓ/h | 12.6 | 15.4 | 19.8 | 25.2 | |||
| Fuel tank capacity ℓ | 120 | 210 | |||||
| Dry weight (kg) | BS | 1450 | 2000 | ||||
| B | 1300 | 1750 | |||||
| A1 | 1000 | 1450 | |||||
| Sound proof | BS |
| Bonnet | B |
| Open(no loof) | A1 |
